SINGEL CHIP 4K CAMERA

This 4K medical camera (Model:HW) is developed based on Xilinx's FPGA platform, employing an FPGA architecture to implement 4K 60fps encoding/decoding and image processing. It features a low-latency, low-power camera and high system integration. Utilizing a modular design, it allows for rapid customization of hardware interface PCBs for customers, and includes mainstream high-speed, high-frequency interfaces such as HDMI 2.0, 12-SDI, and Lemo connectors. A PC simulation system enables full-coverage active cooling and shock-resistant design, eliminating the need for additional fan cooling.

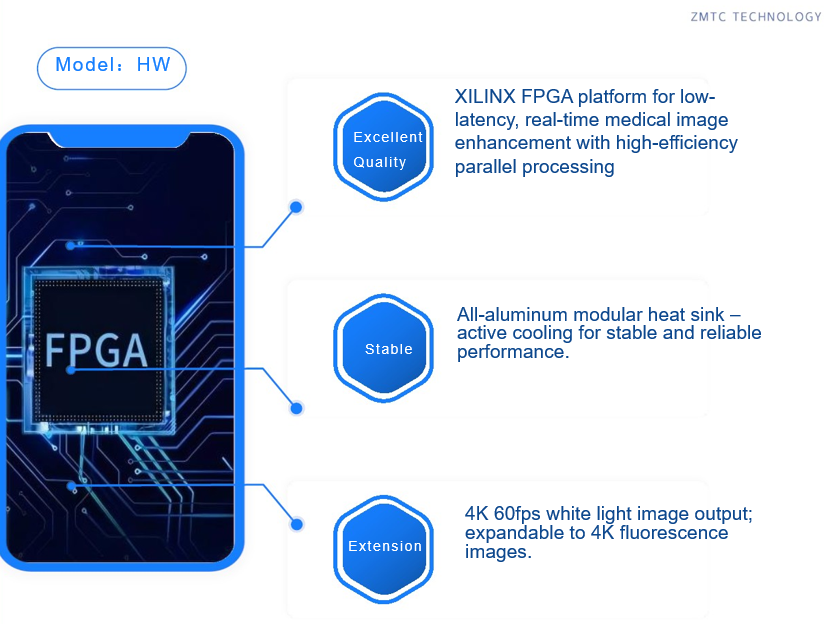

Medical-Grade FPGA Imaging Processor





This 4K  camera is developed on the FPGA platform from XILINX, utilizing FPGA architecture to achieve 4K 60 frames per second encoding and decoding as well as image processing. It features low latency, low-power camera, high system integration, and real-time image enhancement.

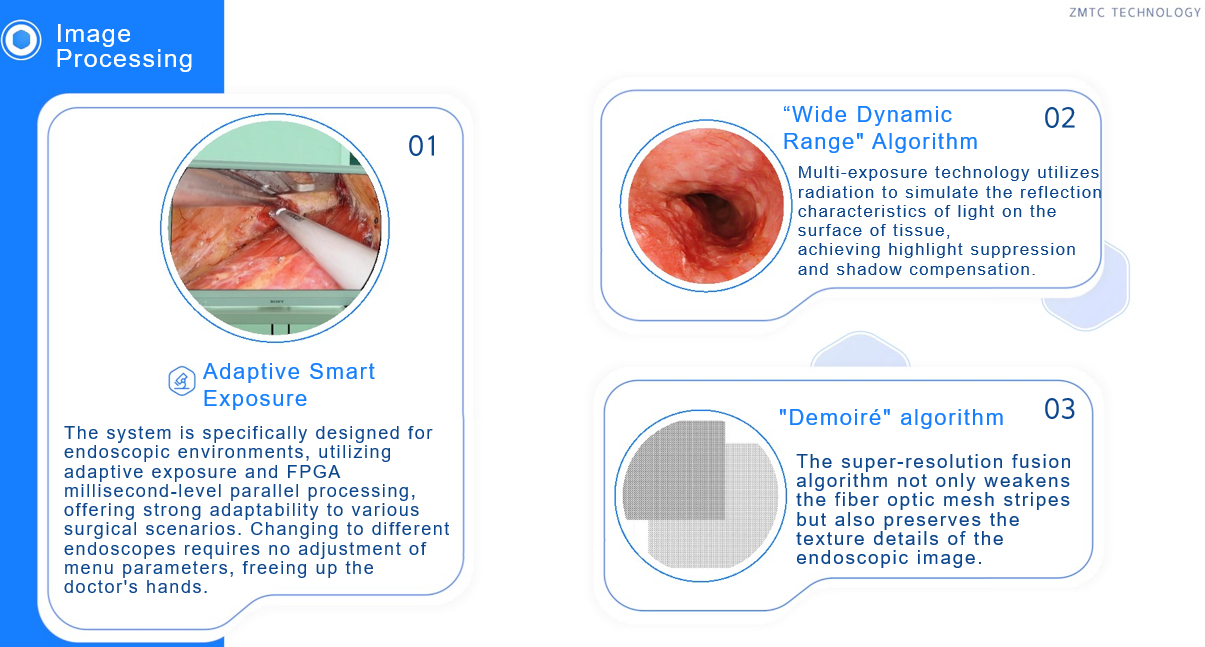

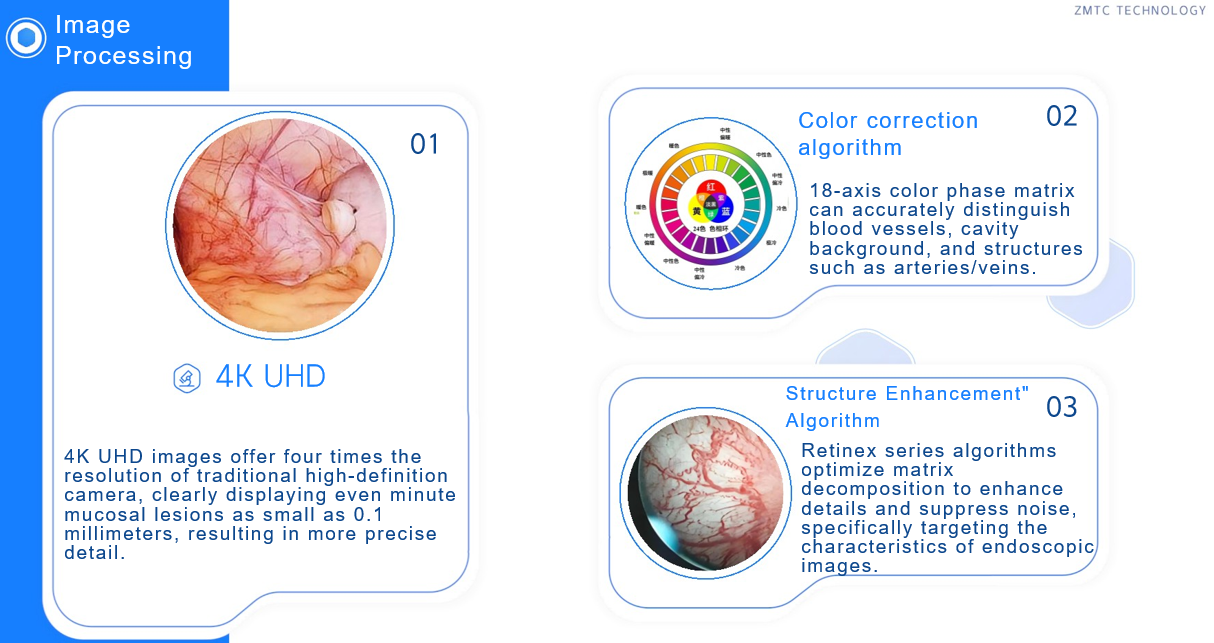

Image performance and advantages

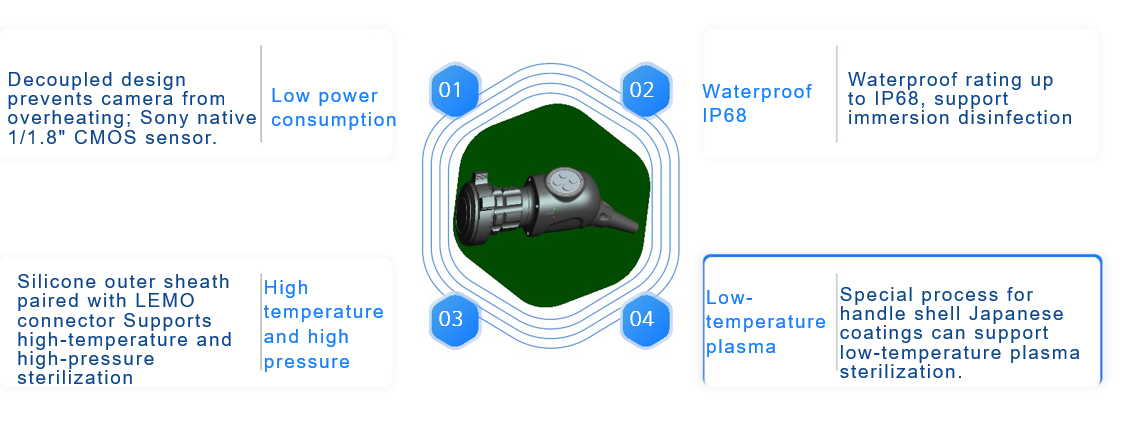

 Camera Head

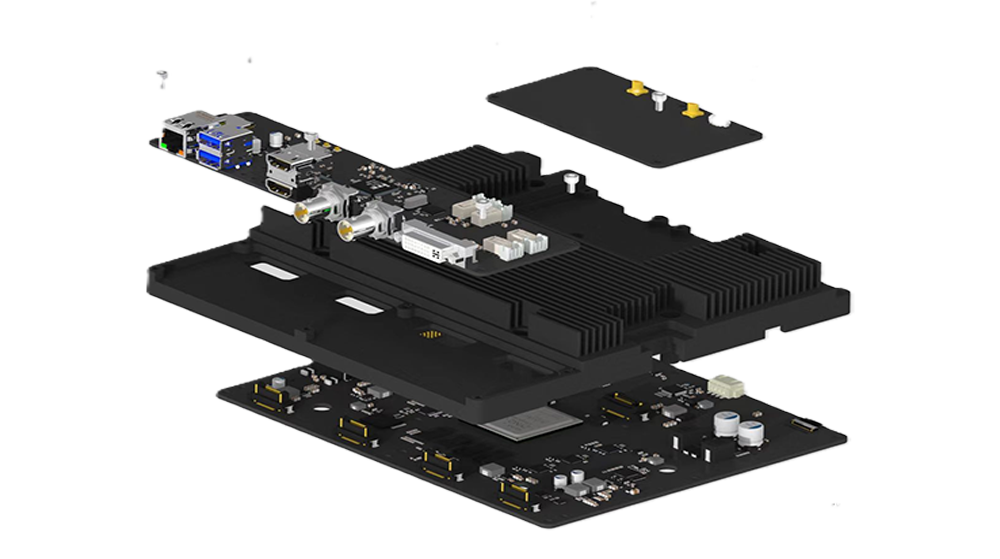

CCU Imaging Processor




USB interface and video recording function

The host is equipped with two USB3.0 ports on the front and two on the back, supporting 8-megapixel photography and 4K video recording.

Multiple output ports
Supports simultaneous output of 4K Ultra HD and 1080P HD, with 2 HDMI2.0 outputs for 4K 60 frames per second real-time video images. 2x 12G SDI outputs for 4K 60 frames per second real-time video images. 1x DVI output for 1080P 60 frames per second real-time images.

External communication control method
The menu can be controlled through a USB mouse, LCD touch screen, keypad, etc. A reserved HCOM external communication serial port allows for linkage with external devices such as light sources and pneumoperitoneum machines.

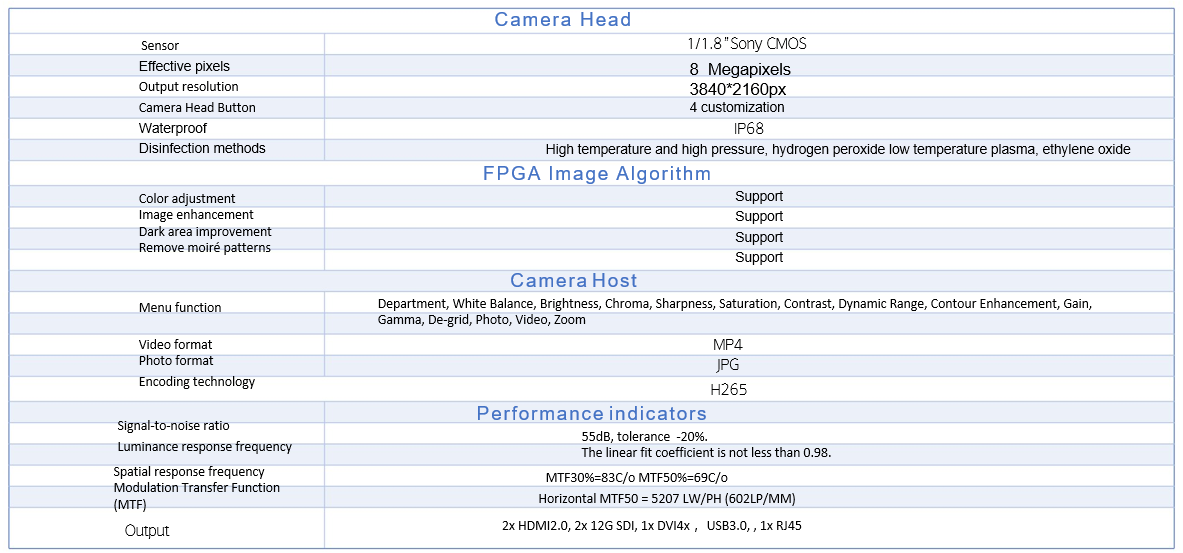

SPECIFICATION


DIMENTISONS


Name Download
