This 3 chip 4K camera (Model:HW-3CMOS) features a genuine Sony three-chip 4K camera module, employing three native 4K sensors. The backend is paired with a Xilinx FPGA real-time image processing system. It suitable for medical endoscopes and surgical microscopes.
This camera system is equipped with an original SONY three-chip 4K camera module, utilizing three native 4K sensors. The backend is paired with an XILINX FPGA image real-time processing system.
A three-chip 4K camera system suitable for medical endoscopes and surgical microscopes.

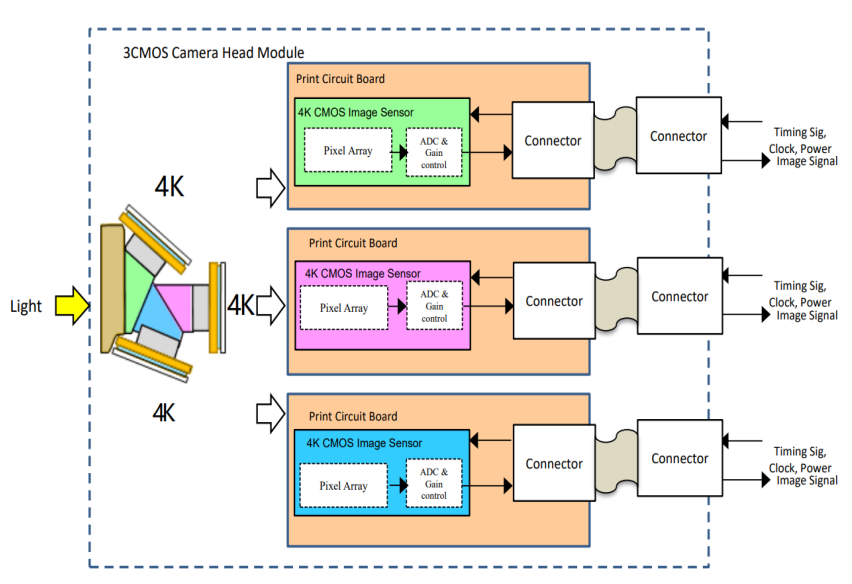

Each sensor supports a resolution of 3840*2160px, with a total pixel count exceeding 24 million. After precise light splitting by a prism, the red, green, and blue light beams each reach their dedicated 4K photosensitive chips. The signals are read out in parallel without Bayer interpolation, directly outputting fully sampled 4K RAW data. The chroma bandwidth is increased by 2.4 times, ensuring smooth color transitions without aliasing. Theoretically, it supports up to 12bit wide color gamut, and the color space supports BT.709 and BT.2020 for HDR output.
The single-chip design is prone to generating false colors and moire patterns at fine textures due to the mosaic filter; the three-chip architecture eliminates this defect from the source. The Macbeth 24-color card test shows a ΔE average value of <1.2, which is superior to the industry benchmark of ≤3 for film-level quality. The Rec.2020 coverage rate can reach 87%, and DCI-P3 can reach 99%. In medical scenarios, the color gradation is richer, infinitely approaching the real surgical scene.
Since this module employs three 4K sensors, its transmission bandwidth exceeds 26.5G; the higher the transmission rate, the greater the heat generation. By utilizing the design principles of heat dissipation fins and combining real-time thermal simulation with digital twin technology, the volume of the cooling system has been effectively reduced by 20%.

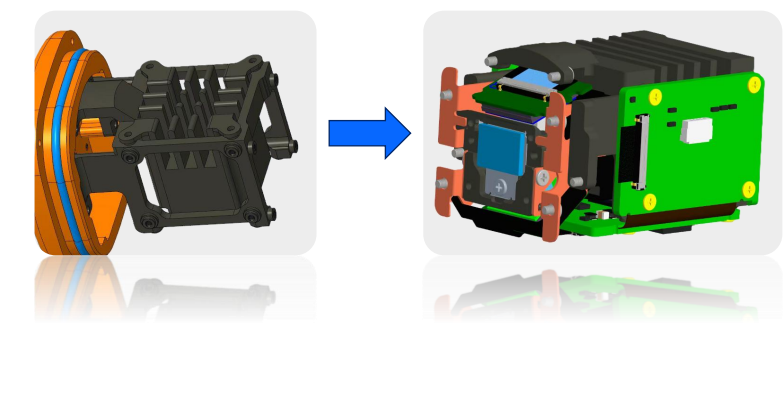

The combination of multiple modular all-aluminum radiators, precisely fitted to PCB circuit board components, ensures stable heat dissipation even in harsh environments with vibration and dust, meeting strict safety standards such as UL94V0. Ultimately, this enables the three-chip camera to withstand the demanding high-temperature and high-pressure sterilization standards in medical applications.
A common perception in the medical industry:

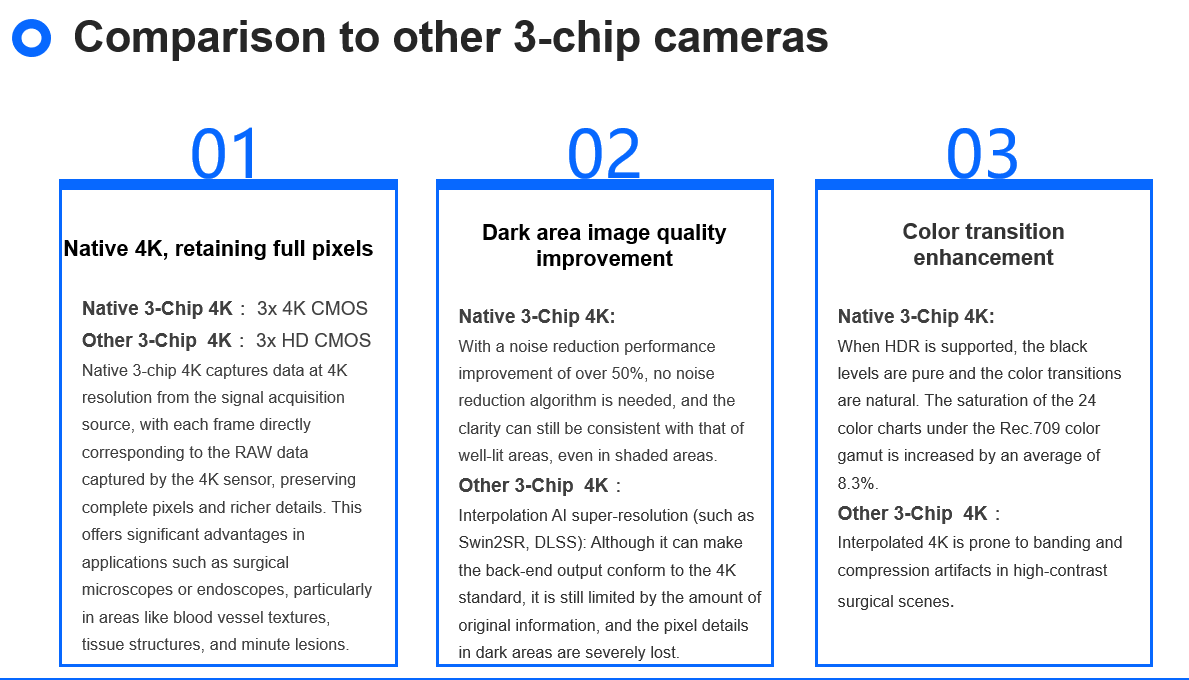

Currently, cameras on the market claiming to have 4K triple-chip technology are all constructed using three 1080P CMOS sensors, and then output a resolution of 3840*2160 through backend interpolation. In principle, this still falls under the FULL HD 1080P resolution category.
Although its clarity meets the requirements for general surgical use, the loss of details becomes more pronounced during remote digital zoom or when displayed on a 55-inch large screen.
Waterproofness: The sealing waterproof level can reach IP68, and it supports immersion disinfection
Compatibility: Special craftsmanship of shell, Japanese material coating, low-temperature plasma sterilization
Reliability: Flat connector, gold plating process, stable transmission, reliable insertion and extraction
USB interface and video recording function
The host is equipped with two USB3.0 ports on the front and two on the back, supporting 8-megapixel photography and 4K video recording.
Multiple output ports
Supports simultaneous output of 4K Ultra HD and 1080P HD, with 2 HDMI2.0 outputs for 4K 60 frames per second real-time video images. 2x 12G SDI outputs for 4K 60 frames per second real-time video images. 1x DVI output for 1080P 60 frames per second real-time images.
External communication control method
The menu can be controlled through a USB mouse, LCD touch screen, keypad, etc. A reserved HCOM external communication serial port allows for linkage with external devices such as light sources and pneumoperitoneum machines.

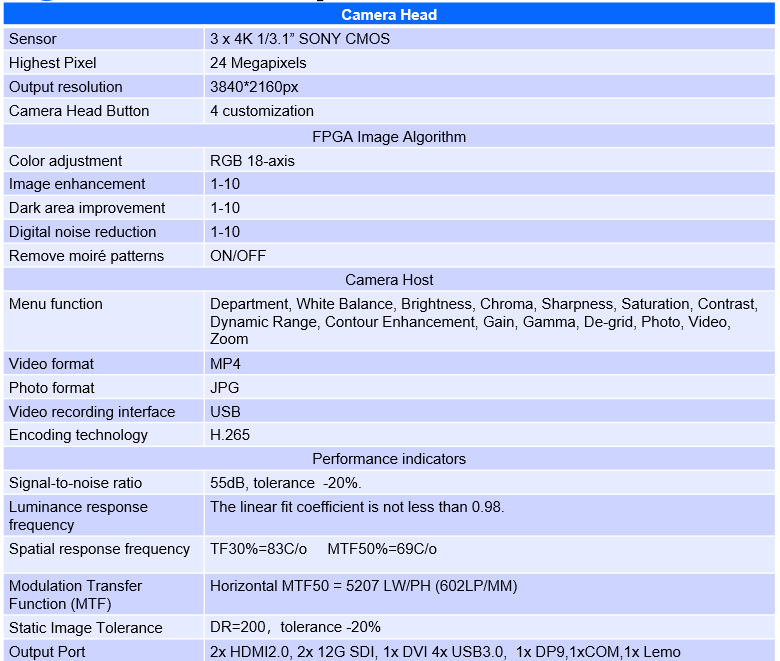

| Name | Download |
|---|---|
| 3 CHIP 4K CAMERA:HW-3CMOS |  |
