● USB upgrade

● Touch screen and button control

● USB Record and playback

● USB upgrade

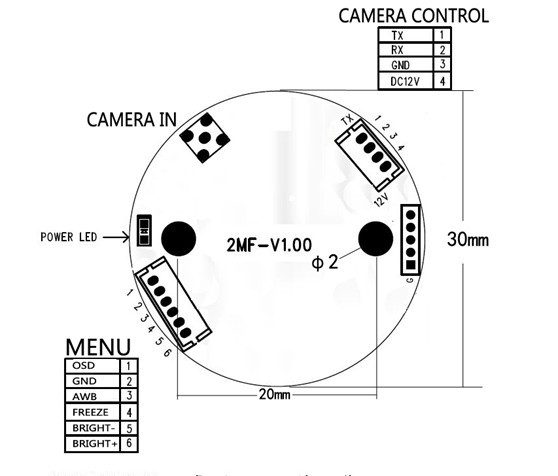

V1:camera: φ28mm  CCU: 69*93mm

V2:camera: 24*32mm  CCU: 65*90mm

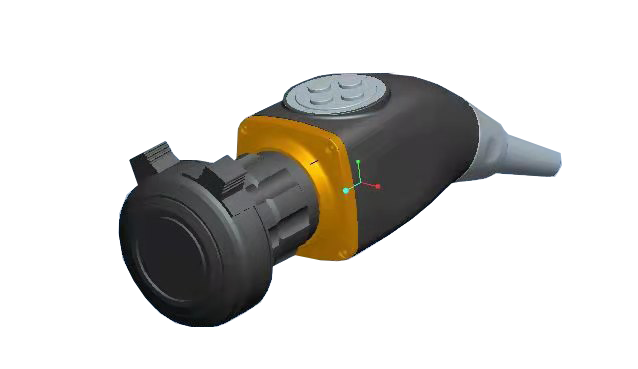

1.Small-sized camera (the size of a coin): The handle and housing

 of the camera canbe designed to be very lightweight and ergonomic.

2.The camera module features a split-type ISP design, which boasts

low power consumption, minimal heat generation, enhanced stability,

and a reduced failure rate.

3.Copper-cored cable connection is simple, boasts strong shielding

 performance,

is less susceptible to interference, and incurs lower after-sales

 maintenance costs.

1.Currently, most low-end and inexpensive endoscope cameras

on the market are based on security surveillance cameras, where the sensor

and processor are integrated on the same circuit board, resulting in high

heat generation and a high failure rate over extended periods of operation.

2.Low-end cameras are basically made up of a camera head and a backend

signal converter board, which can easily cause signal attenuation and instability.

3.Failing to pass medical EMC and safety regulations certifications,

 the rectification process is very complicated.

1.The camera sensor with an ultra-large target surface (1/1.8")

is more suitable for endoscope applications: it still performs

excellently in terms of color and clarity even under low light condition.

2.Specifically targeting the color temperature of the light source for

 medical microscopes, we calibrate the colors under a professional-grade

 color temperature light box to ensure accurate color reproduction and

prevent color cast after bleeding.

3.Leveraging the inherent advantages of Sony's back-illuminated sensors,

their ultra-high sensitivity makes them particularly suitable for ophthalmic

 microscopes; with an ultra-wide dynamic range, even if nearby teeth

obstruct the view, distant tissues remain visible.

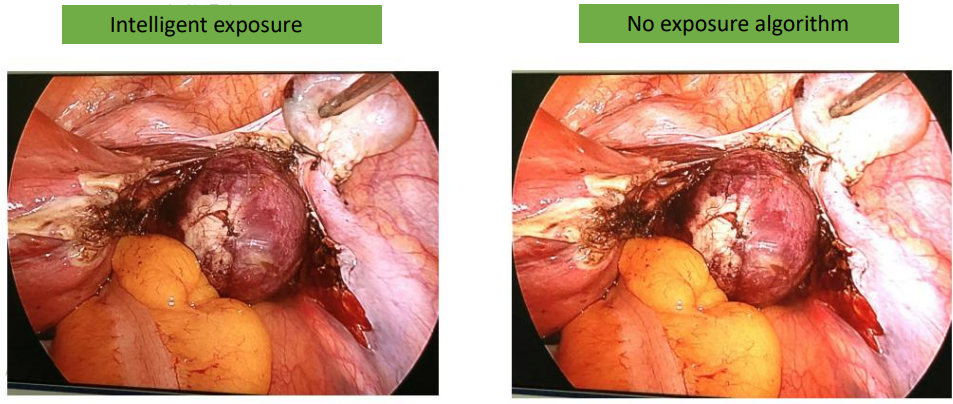

4.The self-developed intelligent photometry algorithm suppresses the

reflection from instruments, enhancing the comfort of during surgery.

1.Most industrial security cameras, based on the software adjusted

in industrial security environments,generally exhibit poor clarity and

 color reproduction under low-light conditions in endoscopy;

2.Industrial security cameras have not been specifically calibrated

 for medical surgical scenarios: the white balance is inaccurate, colors

are skewed after bleeding, and the transparency and dynamic range are poor;

 no adjustments are made to deal with reflections from metal instruments

1.Up to 4 interfaces can output video to the monitor, allowing the

attending physician/assistant to simultaneously view the screen

 from different angles.

2.It supports the simultaneous display of high-definition images

and touch interface on thesame screen, featuring an integrated

 design that is simple, convenient, and fast.

3.Supports wired and wireless remote control foot switches,

as well as USB mouse and

keyboard devices, allowing direct editing of case information

 and even printing of reports.

4.Support remote USB flash drive upgrade, no need to visit the

 customer's site for maintenance.

1.Most video signal adapters do not support recording functions, requiring an external recording module,

which incurs additional costs and is unstable, with a loss in picture quality.

2.It lacks many applications specifically tailored for medical endoscopes, has low scalability,

and cannot modify or expand any other applications
